Product overview

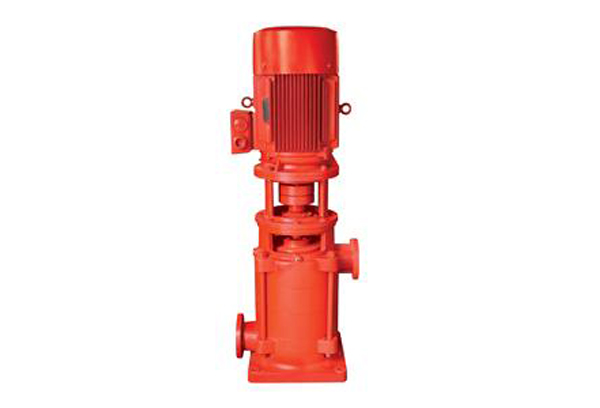

Xbd-l type vertical single suction multistage segmented fire pump unit is used to transport clean water without solid particles and liquids with physical and chemical properties similar to water. It is mainly used for pressurized water supply in fire fighting system, industrial and urban water supply and drainage, high-rise building pressurized water supply, transportation distance water supply, heating, bathroom, boiler cooling and heating water cycle pressurization, air conditioning and refrigeration system water supply and equipment matching.
娱乐中心The performance and technical conditions of xbd-l series fire pumps produced by our company meet the requirements of gb6245-1998 "performance requirements and test methods for fire pumps" issued by the state. The products have passed the test of national fire equipment quality supervision and testing center, and obtained the Shanghai fire protection product certification.
The company has strong technical force, rich production experience and perfect detection means, so as to ensure the stability and reliability of product quality.
娱乐中心Product features
1. The pump mechanism is compact, small in size and beautiful in appearance. Its vertical mechanism determines that the installation area is small, and its center of gravity coincides with the center of the pump foot, thus enhancing the operation stability and service life of the pump.
2. The suction and discharge of the pump are horizontal, which simplifies the connection of the pipeline.
娱乐中心3. According to the need, the suction and outlet can be installed in the same direction or in different directions of 90 °, 180 ° and 270 ° to meet different connection occasions.
娱乐中心4. The pump pressure can be increased or decreased according to the need and the impeller diameter can be cut, without changing the installation area, which is not available for other pumps.
5. The pump rotor has small winding, stable operation, low vibration, low noise and long service life.
娱乐中心technical parameter
Flow rate: 4-100l / S;
Pressure: 0.16-2.25mpa;
Power: 3-200kw;
Speed: 1450r / min;
娱乐中心Diameter: ф 50 - ф 200 mm;
娱乐中心Temperature range: ≤ 80 ℃.
Model meaning
娱乐中心XBD5.7/25-100L
XBD - fire pump unit code
5.7 - design pressure (1 / 10MPa)
25 - design flow (L / s)
娱乐中心100 - inlet and outlet diameter (mm)
娱乐中心L – vertical structure
model | flow Q | lift (m) | speed (r/min) | 娱乐中心efficiency (%) | power (Kw) | NPSH (m) | ||
(L/s) | (m 3 /h) | Shaft power | Matching power | |||||
XBD2.2/5-50×2 | 5 | 18 | 22 | 1480 | 55 | 1.9 | 3 | 2.6 |
XBD3.3/5-50×3 | 5 | 18 | 33 | 1480 | 55 | 2.9 | 4 | 2.6 |
XBD4.4/5-50×4 | 5 | 18 | 44 | 1480 | 55 | 3.9 | 5.5 | 2.6 |
娱乐中心XBD5.5/5-50×4 | 5 | 18 | 55 | 1480 | 55 | 4.9 | 5.5 | 2.6 |
娱乐中心XBD6.6/5-50×6 | 5 | 18 | 66 | 1480 | 55 | 5.8 | 7.5 | 2.6 |
娱乐中心XBD7.7/5-50×7 | 5 | 18 | 77 | 1480 | 55 | 6.8 | 7.5 | 2.6 |
XBD8.8/5-50×8 | 5 | 18 | 88 | 1480 | 55 | 7.8 | 11 | 2.6 |
XBD9.9/5-50×9 | 5 | 18 | 99 | 1480 | 55 | 8.8 | 11 | 2.6 |
XBD11/5-50×10 | 5 | 18 | 110 | 1480 | 55 | 9.8 | 11 | 2.6 |
娱乐中心XBD2.6/10-65×2 | 10 | 36 | 26 | 1480 | 60 | 4.3 | 5.5 | 3.0 |
娱乐中心XBD3.9/10-65×3 | 10 | 36 | 39 | 1480 | 60 | 6.4 | 7.5 | 3.0 |
XBD5.2/10-65×4 | 10 | 36 | 52 | 1480 | 60 | 8.5 | 11 | 3.0 |
XBD6.5/10-65×5 | 10 | 36 | 65 | 1480 | 60 | 10.6 | 15 | 3.0 |
XBD7.8/10-65×6 | 10 | 36 | 78 | 1480 | 60 | 12.8 | 15 | 3.0 |
XBD9.1/10-65×7 | 10 | 36 | 91 | 1480 | 60 | 14.9 | 22 | 3.0 |
XBD10.4/10-65×8 | 10 | 36 | 104 | 1480 | 60 | 17.0 | 22 | 3.0 |
娱乐中心XBD11.7/10-65×9 | 10 | 36 | 117 | 1480 | 60 | 19.1 | 22 | 3.0 |
XBD13/10-65×10 | 10 | 36 | 130 | 1480 | 60 | 21.3 | 30 | 3.0 |
娱乐中心XBD4/15-80×2 | 15 | 54 | 40 | 1480 | 70 | 8.4 | 11 | 2.2 |
娱乐中心XBD6/15-80×3 | 15 | 54 | 60 | 1480 | 70 | 12.6 | 15 | 2.2 |
娱乐中心XBD8/15-80×4 | 15 | 54 | 80 | 1480 | 70 | 16.8 | 22 | 2.2 |
娱乐中心XBD10/15-80×5 | 15 | 54 | 100 | 1480 | 70 | 21.0 | 30 | 2.2 |
XBD12/15-80×6 | 15 | 54 | 120 | 1480 | 70 | 25.2 | 30 | 2.2 |
娱乐中心XBD14/18-80×7 | 15 | 54 | 140 | 1480 | 70 | 29.4 | 37 | 2.2 |
娱乐中心XBD16/15-80×8 | 15 | 54 | 160 | 1480 | 70 | 33.6 | 45 | 2.2 |
XBD18/15-80×9 | 15 | 54 | 180 | 1480 | 70 | 37.8 | 45 | 2.2 |
XBD20/15-80×10 | 15 | 54 | 200 | 1480 | 70 | 42 | 55 | 2.2 |
XBD4.4/25-100×2 | 25 | 90 | 44 | 1480 | 70 | 15.4 | 22 | 2.5 |
娱乐中心XBD6.6/25-100×3 | 25 | 90 | 66 | 1480 | 70 | 23.1 | 30 | 2.5 |
XBD8.8/25-100×4 | 25 | 90 | 88 | 1480 | 70 | 30.8 | 37 | 2.5 |
XBD11/25-100×5 | 25 | 90 | 110 | 1480 | 70 | 38.5 | 45 | 2.5 |
娱乐中心XBD13.2/25-100×6 | 25 | 90 | 132 | 1480 | 70 | 46.2 | 55 | 2.5 |
XBD15.4/25-100×7 | 25 | 90 | 154 | 1480 | 70 | 54.0 | 75 | 2.5 |
XBD17.6/25-100×8 | 25 | 90 | 176 | 1480 | 70 | 61.7 | 75 | 2.5 |
XBD19.8/25-100×9 | 25 | 90 | 198 | 1480 | 70 | 69.4 | 75 | 2.5 |
XBD22/25-100×10 | 25 | 90 | 220 | 1480 | 70 | 77.1 | 90 | 2.5 |
娱乐中心XBD4/40-150×2 | 40 | 144 | 40 | 1480 | 78 | 20.1 | 30 | 2.8 |
娱乐中心XBD6/40-150×3 | 40 | 144 | 60 | 1480 | 78 | 30.2 | 37 | 2.8 |
XBD8/40-150×4 | 40 | 144 | 80 | 1480 | 78 | 40.3 | 45 | 2.8 |
XBD10/410-150×5 | 40 | 144 | 100 | 1480 | 78 | 50.3 | 55 | 2.8 |
XBD12/40-150×6 | 40 | 144 | 120 | 1480 | 78 | 60.4 | 75 | 2.8 |
娱乐中心XBD14/40-150×7 | 40 | 144 | 140 | 1480 | 78 | 70.4 | 90 | 2.8 |
娱乐中心XBD16/40-150×8 | 40 | 144 | 160 | 1480 | 78 | 80.5 | 90 | 2.8 |
娱乐中心XBD18/40-150×9 | 40 | 144 | 180 | 1480 | 78 | 90.5 | 110 | 2.8 |
娱乐中心XBD20/40-150×10 | 40 | 144 | 200 | 1480 | 78 | 100.0 | 132 | 2.8 |
娱乐中心XBD3.8/45-150×2 | 45 | 162 | 38 | 1480 | 78 | 21.4 | 30 | 3.3 |
XBD5.7/45-150×3 | 45 | 162 | 57 | 1480 | 78 | 32.2 | 37 | 3.3 |
娱乐中心XBD7.6/45-150×4 | 45 | 162 | 76 | 1480 | 78 | 42.9 | 45 | 3.3 |
XBD9.5/45-150×5 | 45 | 162 | 95 | 1480 | 78 | 53.7 | 75 | 3.3 |
娱乐中心XBD11.4/45-150×6 | 45 | 162 | 114 | 1480 | 78 | 64.4 | 75 | 3.3 |
XBD13.3/45-150×7 | 45 | 162 | 133 | 1480 | 78 | 75.2 | 90 | 3.3 |
XBD15.2/45-150×8 | 45 | 162 | 152 | 1480 | 78 | 85.9 | 90 | 3.3 |
娱乐中心XBD17.1/45-150×9 | 45 | 162 | 171 | 1480 | 78 | 96.7 | 110 | 3.3 |
娱乐中心XBD19/45-150×10 | 45 | 162 | 190 | 1480 | 78 | 107.4 | 132 | 3.3 |
XBD4.2/75-200×2 | 75 | 270 | 42 | 1480 | 77 | 40.7 | 45 | 4.5 |
XBD6.3/75-200×3 | 75 | 270 | 63 | 1480 | 77 | 61.0 | 75 | 4.5 |
XBD8.4/75-200×4 | 75 | 270 | 84 | 1480 | 77 | 81.3 | 110 | 4.5 |
娱乐中心XBD10.5/75-200×5 | 75 | 270 | 105 | 1480 | 77 | 101.6 | 132 | 4.5 |
XBD12.6/75-200×6 | 75 | 270 | 126 | 1480 | 77 | 112.0 | 160 | 4.5 |
XBD14.7/75-200×7 | 75 | 270 | 147 | 1480 | 77 | 142.3 | 160 | 4.5 |
娱乐中心XBD16.8/75-200×8 | 75 | 270 | 168 | 1480 | 77 | 162.6 | 200 | 4.5 |
娱乐中心XBD4/80-200×2 | 80 | 288 | 40 | 1480 | 78 | 40.2 | 55 | 5 |
XBD6/80-200×3 | 80 | 288 | 60 | 1480 | 78 | 60.4 | 75 | 5 |
XBD8/80-200×4 | 80 | 288 | 80 | 1480 | 78 | 80.5 | 110 | 5 |
XBD10/80-200×5 | 80 | 288 | 100 | 1480 | 78 | 100.6 | 132 | 5 |
娱乐中心XBD12/801-200×6 | 80 | 288 | 120 | 1480 | 78 | 120.7 | 160 | 5 |
XBD14/80-200×7 | 80 | 288 | 140 | 1480 | 78 | 140.9 | 160 | 5 |
XBD16/80-200×8 | 80 | 288 | 160 | 1480 | 78 | 161.0 | 200 | 5 |
Xbd-l single suction multistage segmented fire pump is mainly used for pressurized water supply in fire protection system. It can also be used in industrial and urban water supply and drainage, high-rise building pressure snatch water supply, long-distance water supply, heating, bathroom, boiler cooling and heating water cycle pressurization air-conditioning refrigeration system water supply and equipment matching.
