Product overview
Xbd-l type vertical single-stage single suction fire pump set is used for conveying clean water without solid particles and liquid with physical and chemical properties similar to water. It is mainly used for pipeline pressurization water supply of fire fighting system, industrial and urban water supply and drainage, pressurization water supply for high-rise buildings, long-distance water supply, heating, bathroom, boiler cooling and heating water circulation, booster air-conditioning and refrigeration system water supply and equipment matching And other occasions.
The performance and technical conditions of xbd-l fire pump set produced by our company meet the requirements of gb6245-1998 performance requirements and test methods for fire pump issued by the state. The products have passed the test of national fire equipment quality supervision and testing center, and obtained the Shanghai fire product certification.
The company has strong technical force, rich production experience and perfect detection means, so as to ensure the stability and reliability of product quality.
娱乐中心Product features
娱乐中心1. It has compact structure, small volume and beautiful appearance. Its vertical structure determines that the installation area is small, and its center of gravity coincides with the center of the pump foot, thus enhancing the operation stability and service life of the pump.
2. Stable operation, low noise and high concentricity.
3. Advanced hydraulic model is adopted, with high efficiency and excellent performance.
4. The shaft seal adopts high quality mechanical seal, which has the characteristics of wear resistance, no leakage and long service life.
5. The inlet and outlet of the pump are on the same horizontal axis with the same diameter, which is convenient for pipeline connection and loading and unloading.
6. It is easy to maintain without removing the pipe. As long as the pump cover nut is removed, the motor and drive components can be removed for maintenance.
technical parameter
Flow rate: 5-100l / S;
Pressure: 0.10-1.25mpa;
娱乐中心Power: 1.1-250kw;
Speed: 980-2900r / min;
Diameter: φ 50 - φ 300;
Temperature range: ≤ 80 ℃.
Model meaning:
XBD 3.2/5-65L-160A
XBD - fire pump unit code
3.2 - design pressure (1 / 10MPa)
娱乐中心5 - design flow (L / s)
65 - inlet and outlet diameter (mm)
L – vertical structure
160 - Nominal impeller diameter (mm)
娱乐中心A – impeller first cut
model | flow (L/s) | pressure (MPa) | efficiency （%） | Motor power （KW) | speed (r/min) | NPSH（m) |
XBD2.1/5-65L | 5 | 0.21 | 68 | 3 | 2900 | 2.5 |
娱乐中心XBD1.7/5-65L | 5 | 0.17 | 66 | 2.2 | 2900 | 2.5 |
娱乐中心XBD3.4/5-65L | 5 | 0.34 | 63 | 4 | 2900 | 2.5 |
XBD2.9/5-65L | 5 | 0.29 | 62 | 4 | 2900 | 2.5 |
XBD2.5/5-65L | 5 | 0.25 | 58 | 3 | 2900 | 2.5 |
XBD5.2/5-65L | 5 | 0.52 | 58 | 7.5 | 2900 | 2.5 |
XBD4.5/5-65L | 5 | 0.45 | 57 | 7.5 | 2900 | 2.5 |
娱乐中心XBD3.9/5-65L | 5 | 0.39 | 55 | 5.5 | 2900 | 2.5 |
娱乐中心XBD8.2/5-65L | 5 | 0.82 | 50 | 15 | 2900 | 2.5 |
XBD7.1/5-65L | 5 | 0.71 | 50 | 11 | 2900 | 2.5 |
XBD6.0/5-65L | 5 | 0.6 | 49 | 11 | 2900 | 2.5 |
娱乐中心XBD12.7/5-65L | 5 | 1.27 | 40 | 30 | 2900 | 2.5 |
XBD11.4/5-65L | 5 | 1.14 | 40 | 22 | 2900 | 2.5 |
娱乐中心XBD10.2/5-65L | 5 | 1.02 | 39 | 18.5 | 2900 | 2.5 |
XBD8.5/5-65L | 5 | 0.85 | 38 | 15 | 2900 | 2.5 |
XBD2.2/10-80L | 10 | 0.22 | 72.5 | 5.5 | 2900 | 3 |
XBD1.7/10-80L | 10 | 0.17 | 71 | 4 | 2900 | 3 |
娱乐中心XBD3.2/10-80L | 10 | 0.32 | 71 | 7.5 | 2900 | 3 |
XBD2.9/10-80L | 10 | 0.29 | 70 | 7.5 | 2900 | 3 |
XBD2.5/10-80L | 10 | 0.25 | 69 | 5.5 | 2900 | 3 |
XBD5.3/10-80L | 10 | 0.53 | 67 | 15 | 2900 | 3 |
XBD4.6/10-80L | 10 | 0.46 | 66 | 11 | 2900 | 3 |
XBD3.9/10-80L | 10 | 0.39 | 65 | 7.5 | 2900 | 3 |
娱乐中心XBD8.3/10-80L | 10 | 0.83 | 59 | 22 | 2900 | 3 |
XBD7.1/10-80L | 10 | 0.71 | 59 | 18.5 | 2900 | 3 |
娱乐中心XBD6.1/10-80L | 10 | 0.61 | 58 | 15 | 2900 | 3 |
XBD12.7/10-80L | 10 | 1.27 | 54 | 37 | 2900 | 3 |
XBD11.2/10-80L | 10 | 1.12 | 54 | 30 | 2900 | 3 |
XBD10.1/10-80L | 10 | 1.01 | 53 | 30 | 2900 | 3 |
XBD8.6/10-80L | 10 | 0.86 | 51 | 22 | 2900 | 3 |
娱乐中心XBD15.5/10-80L | 10 | 1.55 | 66 | 55 | 2900 | 3 |
XBD14.5/10-80L | 10 | 1.45 | 65 | 45 | 2900 | 3 |
XBD13.6/10-80L | 10 | 1.36 | 63 | 37 | 2900 | 3 |
娱乐中心XBD1.9/15-80L | 15 | 0.19 | 72.5 | 5.5 | 2900 | 3 |
娱乐中心XBD1.4/15-80L | 15 | 0.14 | 71 | 4 | 2900 | 3 |
娱乐中心XBD3.0/15-80L | 15 | 0.3 | 71 | 7.5 | 2900 | 3 |
XBD2.6/15-80L | 15 | 0.26 | 70 | 7.5 | 2900 | 3 |
XBD2.1/15-80L | 15 | 0.21 | 69 | 5.5 | 2900 | 3 |
XBD4.9/15-80L | 15 | 0.49 | 67 | 15 | 2900 | 3 |
娱乐中心XBD4.2/15-80L | 15 | 0.42 | 66 | 11 | 2900 | 3 |
娱乐中心XBD3.5/15-80L | 15 | 0.35 | 65 | 7.5 | 2900 | 3 |
XBD7.9/15-80L | 15 | 0.79 | 59 | 22 | 2900 | 3 |
XBD6.6/15-80L | 15 | 0.66 | 59 | 18.5 | 2900 | 3 |
XBD5.5/15-80L | 15 | 0.55 | 58 | 15 | 2900 | 3 |
XBD12.4/15-80L | 15 | 1.24 | 54 | 37 | 2900 | 3 |
XBD10.8/15-80L | 15 | 1.08 | 54 | 30 | 2900 | 3 |
娱乐中心XBD9.8/15-80L | 15 | 0.98 | 53 | 30 | 2900 | 3 |
XBD8.3/15-80L | 15 | 0.83 | 51 | 22 | 2900 | 3 |
娱乐中心XBD14.8/15-80L | 15 | 1.48 | 66 | 55 | 2900 | 3 |
娱乐中心XBD13.8/15-80L | 15 | 1.38 | 65 | 45 | 2900 | 3 |
XBD12.7/15-80L | 15 | 1.27 | 63 | 37 | 2900 | 3 |
娱乐中心XBD2.3/20-100L | 20 | 0.23 | 76 | 11 | 2900 | 4.5 |
XBD1.8/20-100L | 20 | 0.18 | 74 | 7.5 | 2900 | 4.5 |
娱乐中心XBD3.6/20-100L | 20 | 0.36 | 76 | 15 | 2900 | 4.5 |
XBD3.0/20-100L | 20 | 0.3 | 74 | 11 | 2900 | 4.5 |
娱乐中心XBD2.5/20-100L | 20 | 0.25 | 72 | 11 | 2900 | 4.5 |
娱乐中心XBD5.3/20-100L | 20 | 0.53 | 74 | 22 | 2900 | 4 |
XBD4.6/20-100L | 20 | 0.46 | 73 | 18.5 | 2900 | 4 |
XBD3.9/20-100L | 20 | 0.39 | 71 | 15 | 2900 | 4 |
XBD8.6/20-100L | 20 | 0.86 | 69 | 37 | 2900 | 4 |
娱乐中心XBD7.4/20-100L | 20 | 0.74 | 68 | 30 | 2900 | 4 |
XBD6.2/20-100L | 20 | 0.62 | 66 | 30 | 2900 | 4 |
娱乐中心XBD13.1/20-100L | 20 | 1.31 | 66 | 75 | 2900 | 4 |
XBD11.7/20-100L | 20 | 1.17 | 66 | 55 | 2900 | 4 |
XBD10.4/20-100L | 20 | 1.04 | 65 | 45 | 2900 | 4 |
XBD8.7/20-100L | 20 | 0.87 | 63 | 37 | 2900 | 4 |
XBD15.2/20-100L | 20 | 1.52 | 57 | 90 | 2900 | 4 |
XBD14.4/20-100L | 20 | 1.44 | 75 | 75 | 2900 | 4 |
娱乐中心XBD13.6/20-100L | 20 | 1.36 | 75 | 55 | 2900 | 4 |
娱乐中心XBD2.1/25-100L | 25 | 0.21 | 76 | 11 | 2900 | 4.5 |
娱乐中心XBD1.6/25-100L | 25 | 0.16 | 74 | 7.5 | 2900 | 4.5 |
娱乐中心XBD3.3/25-100L | 25 | 0.33 | 76 | 15 | 2900 | 4.5 |
娱乐中心XBD2.8/25-100L | 25 | 0.28 | 74 | 11 | 2900 | 4.5 |
娱乐中心XBD2.0/25-100L | 25 | 0.2 | 72 | 11 | 2900 | 4.5 |
娱乐中心XBD5.1/25-100L | 25 | 0.51 | 74 | 22 | 2900 | 4 |
娱乐中心XBD4.4/25-100L | 25 | 0.44 | 73 | 18.5 | 2900 | 4 |
娱乐中心XBD3.5/25-100L | 25 | 0.35 | 71 | 15 | 2900 | 4 |
娱乐中心XBD8.2/25-100L | 25 | 0.82 | 69 | 37 | 2900 | 4 |
娱乐中心XBD7.0/25-100L | 25 | 0.7 | 68 | 30 | 2900 | 4 |
XBD5.9/25-100L | 25 | 0.59 | 66 | 30 | 2900 | 4 |
娱乐中心XBD12.6/25-100L | 25 | 1.26 | 66 | 75 | 2900 | 4 |
XBD11.3/25-100L | 25 | 1.13 | 66 | 55 | 2900 | 4 |
XBD10.1/25-100L | 25 | 1.01 | 65 | 45 | 2900 | 4 |
XBD7.8/25-100L | 25 | 0.78 | 63 | 37 | 2900 | 4 |
XBD15.0/25-100L | 25 | 1.5 | 57 | 90 | 2900 | 4 |
XBD13.8/25-100L | 25 | 1.38 | 75 | 75 | 2900 | 4 |
XBD13.0/25-100L | 25 | 1.3 | 75 | 55 | 2900 | 4 |
娱乐中心XBD2.0/30-100L | 30 | 0.2 | 76 | 11 | 2900 | 4.5 |
娱乐中心XBD1.2/30-100L | 30 | 0.12 | 74 | 7.5 | 2900 | 4.5 |
娱乐中心XBD3.3/30-100L | 30 | 0.33 | 76 | 15 | 2900 | 4.5 |
XBD2.8/30-100L | 30 | 0.28 | 74 | 11 | 2900 | 4.5 |
娱乐中心XBD5.1/30-100L | 30 | 0.51 | 74 | 22 | 2900 | 4 |
娱乐中心XBD4.4/30-100L | 30 | 0.44 | 73 | 18.5 | 2900 | 4 |
XBD3.5/30-100L | 30 | 0.35 | 71 | 15 | 2900 | 4 |
娱乐中心XBD8.2/30-100L | 30 | 0.82 | 69 | 37 | 2900 | 4 |
娱乐中心XBD7.0/30-100L | 30 | 0.7 | 68 | 30 | 2900 | 4 |
XBD5.9/30-100L | 30 | 0.59 | 66 | 30 | 2900 | 4 |
XBD12.6/30-100L | 30 | 1.26 | 66 | 75 | 2900 | 4 |
XBD11.3/30-100L | 30 | 1.13 | 66 | 55 | 2900 | 4 |
XBD10.1/30-100L | 30 | 1.01 | 65 | 45 | 2900 | 4 |
XBD7.8/30-100L | 30 | 0.78 | 63 | 37 | 2900 | 4 |
娱乐中心XBD15.0/30-100L | 30 | 1.5 | 57 | 90 | 2900 | 4 |
XBD13.8/30-100L | 30 | 1.38 | 75 | 75 | 2900 | 4 |
XBD13.0/30-100L | 30 | 1.3 | 75 | 55 | 2900 | 4 |
娱乐中心XBD2.1/40-125L | 40 | 0.21 | 80 | 15 | 2900 | 4 |
XBD1.6/40-125L | 40 | 0.16 | 77 | 11 | 2900 | 4 |
娱乐中心XBD3.4/40-125L | 40 | 0.34 | 78 | 22 | 2900 | 4 |
XBD2.8/40-125L | 40 | 0.28 | 76 | 18.5 | 2900 | 4 |
XBD2.4/40-125L | 40 | 0.24 | 73 | 15 | 2900 | 4 |
娱乐中心XBD5.2/40-125L | 40 | 0.52 | 77 | 37 | 2900 | 5.5 |
XBD4.5/40-125L | 40 | 0.45 | 76 | 30 | 2900 | 5.5 |
XBD3.6/40-125L | 40 | 0.36 | 75 | 22 | 2900 | 5.5 |
XBD8.4/40-125L | 40 | 0.84 | 75 | 55 | 2900 | 5 |
娱乐中心XBD7.2/40-125L | 40 | 0.72 | 74 | 45 | 2900 | 5.5 |
娱乐中心XBD5.8/40-125L | 40 | 0.58 | 73 | 37 | 2900 | 5.5 |
XBD12.8/40-125L | 40 | 1.28 | 70 | 90 | 2900 | 5 |
XBD11.2/40-125L | 40 | 1.12 | 70 | 75 | 2900 | 5 |
XBD9.8/40-125L | 40 | 0.98 | 69 | 75 | 2900 | 5 |
娱乐中心XBD8.8/40-125L | 40 | 0.88 | 67 | 55 | 2900 | 5 |
娱乐中心XBD2.0/45-125L | 45 | 0.2 | 80 | 15 | 2900 | 4 |
娱乐中心XBD1.5/45-125L | 45 | 0.15 | 77 | 11 | 2900 | 4 |
XBD3.2/45-125L | 45 | 0.32 | 78 | 22 | 2900 | 4 |
娱乐中心XBD2.6/45-125L | 45 | 0.26 | 76 | 18.5 | 2900 | 4 |
XBD2.1/45-125L | 45 | 0.21 | 73 | 15 | 2900 | 4 |
XBD5.0/45-125L | 45 | 0.5 | 77 | 37 | 2900 | 5.5 |
XBD4.3/45-125L | 45 | 0.43 | 76 | 30 | 2900 | 5.5 |
XBD3.4/45-125L | 45 | 0.34 | 75 | 22 | 2900 | 5.5 |
娱乐中心XBD8.0/45-125L | 45 | 0.8 | 75 | 55 | 2900 | 5 |
XBD6.9/45-125L | 45 | 0.69 | 74 | 45 | 2900 | 5.5 |
XBD5.5/45-125L | 45 | 0.55 | 73 | 37 | 2900 | 5.5 |
娱乐中心XBD12.5/45-125L | 45 | 1.25 | 70 | 90 | 2900 | 5 |
XBD10.8/45-125L | 45 | 1.08 | 70 | 75 | 2900 | 5 |
娱乐中心XBD9.6/45-125L | 45 | 0.96 | 69 | 75 | 2900 | 5 |
XBD8.6/45-125L | 45 | 0.86 | 67 | 55 | 2900 | 5 |
XBD2.1/50-150L | 50 | 0.21 | 79 | 18.5 | 1450 | 3 |
XBD1.7/50-150L | 50 | 0.17 | 78 | 15 | 1450 | 3 |
XBD1.3/50-150L | 50 | 0.13 | 76 | 11 | 1450 | 3 |
XBD3.3/50-150L | 50 | 0.33 | 78 | 30 | 1450 | 2.5 |
娱乐中心XBD2.8/50-150L | 50 | 0.28 | 77 | 22 | 1450 | 3.5 |
XBD2.4/50-150L | 50 | 0.24 | 76 | 18.5 | 1450 | 3.5 |
娱乐中心XBD5.2/50-150L | 50 | 0.52 | 75 | 45 | 1450 | 3.5 |
XBD4.4/50-150L | 50 | 0.44 | 74 | 37 | 1450 | 3.5 |
娱乐中心XBD3.7/50-150L | 50 | 0.37 | 73 | 30 | 1450 | 3.5 |
XBD3.1/50-150L | 50 | 0.31 | 71 | 22 | 1450 | 3.5 |
XBD8.2/50-150L | 50 | 0.82 | 76 | 75 | 2900 | 4.5 |
XBD7.0/50-150L | 50 | 0.7 | 75 | 55 | 2900 | 4.5 |
娱乐中心XBD5.9/50-150L | 50 | 0.59 | 74 | 45 | 2900 | 4.5 |
娱乐中心XBD12.8/50-150L | 50 | 1.28 | 73 | 110 | 2900 | 4.5 |
娱乐中心XBD11.0/50-150L | 50 | 1.1 | 72 | 90 | 2900 | 4.5 |
娱乐中心XBD9.4/50-150L | 50 | 0.94 | 70 | 75 | 2900 | 4.5 |
XBD2.0/55-200L | 55 | 0.2 | 79 | 18.5 | 1450 | 3 |
娱乐中心XBD1.6/55-200L | 55 | 0.16 | 78 | 15 | 1450 | 3 |
XBD1.2/55-200L | 55 | 0.12 | 76 | 11 | 1450 | 3 |
XBD3.2/55-200L | 55 | 0.32 | 78 | 30 | 1450 | 3.5 |
娱乐中心XBD2.7/55-200L | 55 | 0.27 | 77 | 22 | 1450 | 3.5 |
娱乐中心XBD2.2/55-200L | 55 | 0.22 | 76 | 18.5 | 1450 | 3.5 |
XBD5.0/55-200L | 55 | 0.5 | 75 | 45 | 1450 | 3.5 |
娱乐中心XBD4.2/55-200L | 55 | 0.42 | 74 | 37 | 1450 | 3.5 |
XBD3.5/55-200L | 55 | 0.35 | 73 | 30 | 1450 | 3.5 |
XBD2.8/55-200L | 55 | 0.28 | 71 | 22 | 1450 | 3.5 |
XBD2.0/100-200L | 100 | 0.2 | 80 | 30 | 1450 | 4 |
娱乐中心XBD1.4/100-200L | 100 | 0.14 | 78 | 22 | 1450 | 4 |
XBD1.0/100-200L | 100 | 0.1 | 75 | 18.5 | 1450 | 4 |
XBD3.3/100-200L | 100 | 0.33 | 80 | 55 | 1450 | 4 |
XBD2.8/100-200L | 100 | 0.28 | 79 | 45 | 1450 | 4 |
XBD2.3/100-200L | 100 | 0.23 | 78 | 37 | 1450 | 4 |
XBD5.1/100-200L | 100 | 0.51 | 81 | 75 | 1450 | 4 |
娱乐中心XBD4.4/100-200L | 100 | 0.44 | 80 | 75 | 1450 | 4 |
XBD3.5/100-200L | 100 | 0.35 | 78 | 55 | 1450 | 5 |
XBD3.0/100-200L | 100 | 0.3 | 76 | 45 | 1450 | 5 |
XBD2.0/150-250L | 150 | 0.2 | 82 | 45 | 1450 | 5 |
XBD1.7/140-250L | 140 | 0.17 | 80 | 37 | 1450 | 5 |
XBD3.2/140-250L | 140 | 0.32 | 80 | 75 | 1450 | 5.5 |
娱乐中心XBD2.8/140-250L | 140 | 0.28 | 78 | 55 | 1450 | 5.5 |
XBD2.1/140-250L | 140 | 0.21 | 74 | 45 | 1450 | 5.5 |
娱乐中心XBD2.0/140-250L | 140 | 0.2 | 78 | 37 | 1480 | 4.5 |
XBD5.0/140-250L | 140 | 0.5 | 72 | 90 | 1480 | 4.5 |
XBD2.0/200-300L | 200 | 0.2 | 83 | 55 | 1450 | 6 |
XBD2.8/200-300L | 200 | 0.28 | 82 | 75 | 1480 | 5 |
XBD3.2/200-300L | 200 | 0.32 | 84 | 90 | 1480 | 4.5 |
XBD4.4/200-300L | 200 | 0.44 | 84 | 132 | 970 | 5 |
娱乐中心XBD4.2/200-300L | 200 | 0.42 | 78 | 110 | 1480 | 5 |
XBD1.2/220-350L | 220 | 0.12 | 83 | 37 | 1480 | 4.5 |
娱乐中心XBD2.0/220-350L | 220 | 0.2 | 82 | 55 | 1480 | 4.5 |
XBD3.2/220-350L | 220 | 0.32 | 84 | 90 | 1480 | 4.5 |
XBD5.0/220-350L | 220 | 0.5 | 83 | 160 | 1480 | 4.5 |

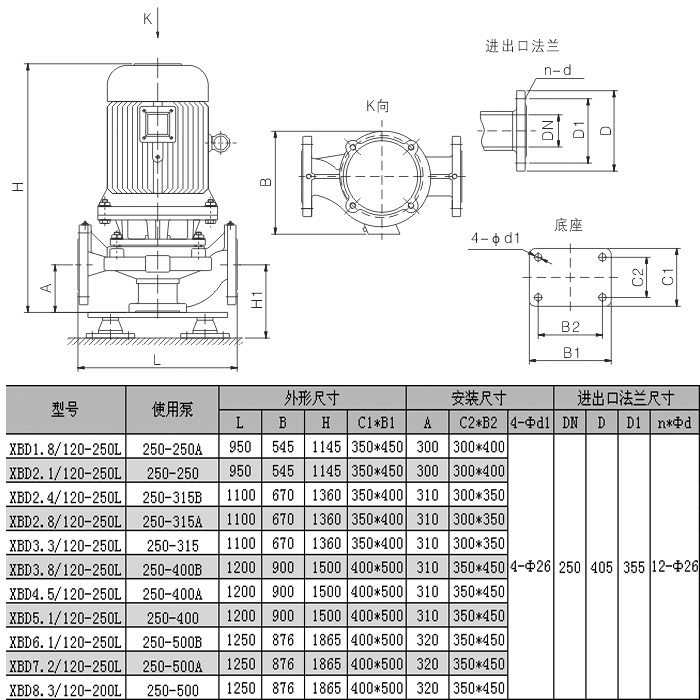

Xbd-l fire pump is mainly used for pressurized water supply of fire system pipeline. It can also be used in industrial and urban water supply and drainage, high-rise building pressure snatch water supply, long-distance water supply, heating, bathroom, boiler cooling and heating water cycle pressurization air-conditioning refrigeration system water supply and equipment matching.
