Product overview

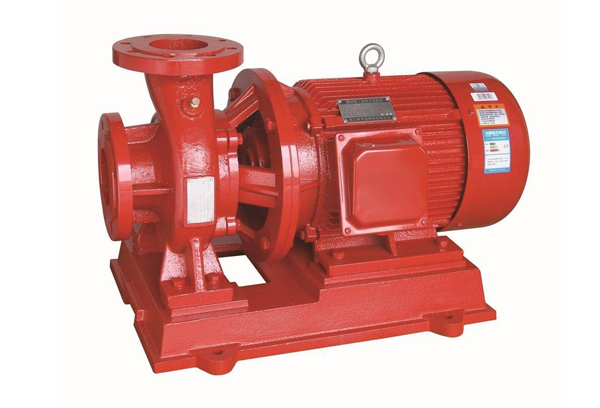

娱乐中心Xbd-w Horizontal single-stage single suction fire pump set is used for conveying clean water without solid particles and liquid with physical and chemical properties similar to water. It is mainly used for pressurized water supply in fire protection system, industrial and urban water supply and drainage, pressurized water supply for high-rise buildings, long-distance water supply, heating, bathroom, boiler cooling and heating water circulation, booster air-conditioning and refrigeration system water supply and equipment matching And other occasions.
The performance and technical conditions of xbd-w fire pump set produced by our company meet the requirements of gb6245-1998 performance requirements and test methods for fire pump issued by the state. The products have passed the test of national fire equipment quality supervision and testing center, and obtained the Shanghai fire product certification.
The company has strong technical force, rich production experience and perfect detection means, so as to ensure the stability and reliability of product quality.
Product features
< 1. Compact structure, beautiful appearance and small floor area.
2. Stable operation, low noise and high concentricity.
娱乐中心3. Advanced hydraulic model is adopted, with high efficiency and excellent performance.
娱乐中心4. The shaft seal adopts high quality mechanical seal, which has the characteristics of wear resistance, no leakage and long service life.
娱乐中心5. The pump inlet is horizontal and the outlet is vertical upward structure, which is convenient for pipeline layout.
6. It is easy to maintain without removing the pipe. As long as the pump cover nut is removed, the motor and drive components can be removed for maintenance.
娱乐中心technical parameter
娱乐中心Flow rate: 5-100l / S;
娱乐中心Pressure: 0.10-1.25mpa;
Power: 1.1-250kw;
娱乐中心Speed: 980-2900r / min;
Diameter: φ 50 - φ 300;
Temperature range: ≤ 80 ℃.
娱乐中心Model meaning
XBD3.2/5-65W-160A
XBD - fire pump unit code
3.2 - design pressure (1 / 10MPa)
5 - design flow (L / s)
娱乐中心65 - inlet and outlet diameter (mm)
W – horizontal structure
娱乐中心160 - Nominal impeller diameter (mm)
娱乐中心A – first pass of impeller
model | flow Q | Outlet pressure (MPa) | speed n | power P | efficiency η |
XBD3.0/5-50(65) | 5 | 0.30 | 2900 | 4 | 63 |
娱乐中心XBD3.2/5-50(65) | 0.32 | ||||
娱乐中心XBD3.4/5-50(65) | 0.34 | ||||
XBD4.6/5-50(65) | 5 | 0.46 | 2900 | 7.5 | 58 |
XBD4.8/5-50(65) | 0.48 | ||||
娱乐中心XBD5.0/5-50(65) | 0.50 | ||||
娱乐中心XBD7.6/5-50(65) | 5 | 0.76 | 2900 | 15 | 50 |
娱乐中心XBD7.8/5-50(65) | 0.78 | ||||
娱乐中心XBD8.0/5-50(65) | 0.80 | ||||
XBD11/5-50(65) | 5 | 1.10 | 2900 | 30 | 40 |
娱乐中心XBD12/5-50(65) | 1.20 | ||||
娱乐中心XBD12.5/5-50(65) | 1.25 | ||||
XBD3.0/10-65(80) | 10 | 0.30 | 2900 | 7.5 | 71 |
XBD3.2/10-65(80) | 0.32 | ||||
XBD3.4/10-65(80) | 0.34 | ||||
XBD4.6/10-65(80) | 10 | 0.46 | 2900 | 15 | 67 |
XBD4.8/10-65(80) | 0.48 | ||||
XBD5.0/10-65(80) | 0.50 | ||||
娱乐中心XBD7.6/10-65(80) | 10 | 0.76 | 2900 | 22 | 59 |
XBD7.8/10-65(80) | 0.78 | ||||
XBD8.0/10-65(80) | 0.80 | ||||
XBD11/10-65(80) | 10 | 1.10 | 2900 | 37 | 54 |
XBD12/10-65(80) | 1.20 | ||||
娱乐中心XBD12.5/10-65(80) | 1.25 | ||||
XBD3.0/25-80(100) | 25 | 0.30 | 2900 | 15 | 76 |
XBD3.2/25-80(100) | 0.32 | ||||
XBD3.4/25-80(100) | 0.34 | ||||
XBD4.6/25-80(100) | 25 | 0.46 | 2900 | 22 | 74 |
娱乐中心XBD4.8/25-80(100) | 0.48 | ||||
XBD5.0/25-80(100) | 0.50 | ||||
XBD7.6/25-80(100) | 25 | 0.76 | 2900 | 37 | 69 |
娱乐中心XBD7.8/25-80(100) | 0.78 | ||||
XBD8.0/25-80(100) | 0.80 | ||||
娱乐中心XBD11/25-80(100) | 25 | 1.10 | 2900 | 75 | 69 |
娱乐中心XBD12/25-80(100) | 1.20 | ||||
娱乐中心XBD12.5/25-80(100) | 1.25 | ||||
娱乐中心XBD13/25-80(100) | 25 | 1.30 | 2900 | 90 | 57 |
XBD14/25-80(100) | 1.40 | ||||
娱乐中心XBD15/25-80(100) | 1.50 | ||||
娱乐中心XBD3.0/45-100(125) | 45 | 0.30 | 2900 | 22 | 73 |
XBD3.2/45-100(125) | 0.32 | ||||
娱乐中心XBD3.4/45-100(125) | 0.34 | ||||
XBD4.6/45-100(125) | 45 | 0.46 | 2900 | 37 | 77 |
娱乐中心XBD4.8/45-100(125) | 0.48 | ||||
XBD5.0/45-100(125) | 0.50 | ||||
XBD7.6/45-100(125) | 45 | 0.76 | 2900 | 55 | 80 |
XBD7.8/45-100(125) | 0.78 | ||||
娱乐中心XBD8.0/45-100(125) | 0.80 | ||||
XBD11/45-100(125) | 45 | 1.10 | 2900 | 90 | 70 |
娱乐中心XBD12/45-100(125) | 1.20 | ||||
娱乐中心XBD12.5/45-100(125) | 1.25 | ||||
XBD2.8/55-150(200) | 55 | 0.28 | 1450 | 30 | 78 |
XBD3.0/55-150(200) | 0.30 | ||||
XBD3.2/55-150(200) | 0.32 | ||||
娱乐中心XBD4.6/55-150(200) | 55 | 0.46 | 1450 | 45 | 75 |
娱乐中心XBD4.8/55-150(200) | 0.48 | ||||
娱乐中心XBD5.0/55-150(200) | 0.50 | ||||
XBD7.6/55-150 | 55 | 0.76 | 2900 | 75 | 76 |
娱乐中心XBD7.8/55-150 | 0.78 | ||||
娱乐中心XBD8.0/55-150 | 0.80 | ||||
娱乐中心XBD11/55-150 | 55 | 1.10 | 2900 | 110 | 73 |
XBD12/55-150 | 1.20 | ||||
XBD12.5/55-150 | 1.25 | ||||
XBD13/55-150 | 45 | 1.30 | 2900 | 110 | 80 |
娱乐中心XBD14/55-150 | 1.40 | ||||
XBD15/55-150 | 1.50 | ||||
XBD4.6/100-200 | 100 | 0.46 | 1450 | 75 | 81 |
娱乐中心XBD4.8/100-200 | 0.48 | ||||
XBD5.0/100-200 | 0.50 | ||||
XBD3.0/150-250 | 150 | 0.30 | 1450 | 75 | 80 |
XBD3.2/150-250 | 0.32 | ||||
娱乐中心XBD3.4/150-250 | 0.34 | ||||
XBD4.6/140-250 | 140 | 0.46 | 1450 | 90 | 72 |
娱乐中心XBD4.8/140-250 | 0.48 | ||||
娱乐中心XBD5.0/140-250 | 0.50 | ||||
XBD2.4/200-300 | 200 | 0.24 | 970 | 75 | 81 |
娱乐中心XBD2.6/200-300 | 0.26 | ||||
XBD2.8/200-300 | 0.28 | ||||
XBD2.8/200-300(350) | 200 | 0.28 | 1450 | 90 | 84 |
XBD3.0/200-300(350) | 0.30 | ||||
XBD3.2/200-300(350) | 0.32 | ||||
XBD4.0/200-300 | 200 | 0.40 | 970 | 132 | 84 |
XBD4.2/200-300 | 0.42 | ||||
娱乐中心XBD4.4/200-300 | 0.44 | ||||
XBD4.6/160-300 | 160 | 0.46 | 1450 | 110 | 78 |
娱乐中心XBD4.8/160-300 | 0.48 | ||||
XBD5.0/160-300 | 0.50 | ||||
XBD4.6/200-350 | 200 | 0.46 | 1450 | 160 | 83 |
娱乐中心XBD4.8/200-350 | 0.48 | ||||
娱乐中心XBD5.0/200-350 | 0.50 | ||||
娱乐中心XBD2.8/300-400 | 300 | 0.28 | 1450 | 132 | 76 |
XBD3.0/300-400 | 0.30 | ||||
XBD3.2/300-400 | 0.32 | ||||
XBD2.8/330-500 | 330 | 0.28 | 1450 | 160 | 78 |
XBD3.0/330-500 | 0.30 | ||||
XBD3.2/330-500 | 0.32 |
Xbd-w series fire pump is suitable for pressurized water supply of fire pipeline. It is used for conveying clear water or other liquids with physical and chemical properties similar to water for pressurization. It is suitable for industrial and urban water supply and drainage, high-rise building pressurized water supply, garden sprinkler irrigation, long-distance water supply, heating, bathroom and other cold and warm water cycle pressurization and equipment matching.
