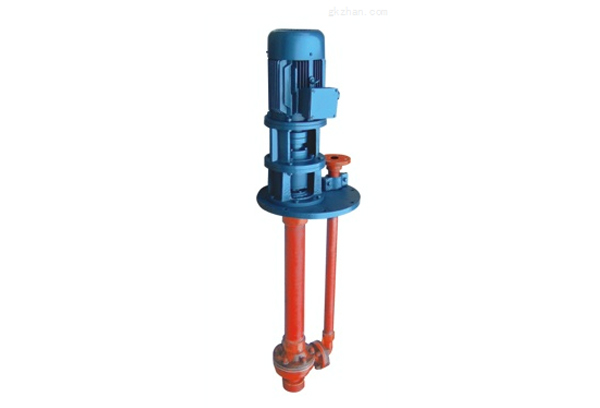

Overview of fsy and WSY vertical FRP submerged pumps:
娱乐中心WSY type and fsy type pumps are produced by our company. 1. WSY type pump is vertical FRP submerged vortex pump. 2. Fsy pump is a vertical FRP submerged pump. The pump can be selected from 800mm to 3000mm due to the different depth of the tank. As long as the liquid is higher than the pump body, the liquid can be started without filling. There is a leakage hole under the flat cover plate, so the liquid will not leak to the outside of the storage tank.
娱乐中心The pump parts in contact with the medium are made of phenolic glass fiber reinforced plastics (GFRP) modified by polyvinyl butyral and molded at high temperature. The connection pipe and liquid outlet pipe are made of phenolic glass steel pipe by semi dry rolling process. The assembly of impeller shaft sleeve is bonded with phenolic mortar and the pump shaft. The assembly of all parts under the liquid is bonded with phenolic cement, and there is no metal under the liquid Contact with the medium, the corrosion resistance is absolutely reliable. The product has excellent properties such as light weight, high strength, no deformation, temperature resistance and corrosion resistance. It can partly replace precious metals such as molybdenum stainless steel, titanium and titanium alloy.
娱乐中心In the direction of transmission and rotation: the pump is directly driven by the motor through the claw type elastic coupling, and the pump rotates clockwise from the motor end.

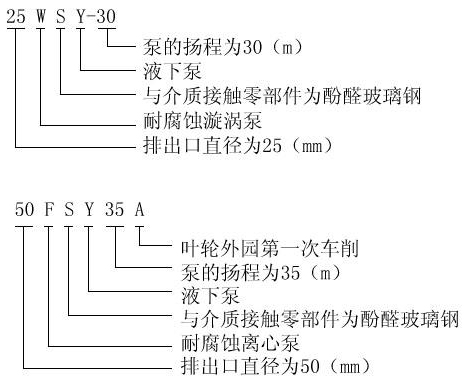

2、 The significance of the models of fsy and WSY vertical FRP submerged pumps is as follows
娱乐中心Example: 50wfsy-35a
50 ------ outlet diameter mm w ------ vortex type
F ------ centrifugal pump s ------ material of parts contacting with medium is FRP
Y ------ submerged pump 35 ------ lift M
3、 Features of fsy and WSY vertical FRP submerged pumps:
The products have excellent properties such as light weight, high strength, no deformation, temperature resistance and corrosion resistance. They can partly replace precious metals such as molybdenum stainless steel, titanium and titanium alloy.
娱乐中心4、 Technical parameters of fsy and WSY vertical FRP submerged pumps:
娱乐中心Flow range: 2.88 m 3 / H ~ 110 m 3 / h
娱乐中心Lift range: 15m ~ 50m
Motor power: 1.5kw ~ 15kw
model | flow Q | lift H (m) | speed n (r/min) | power N (Kw) | Impeller diameter D (mm) | Suction height (Hs) | ||
(m3/h) | (L/S) | |||||||
25WSY-22 | a type | 2.88 | 0.8 | 22 | 2900 | 2.2 | 120 | 800-3000 |
4.05 | 1.12 | 18 | ||||||
6.48 | 1.8 | 15 | ||||||
25WSY-30 | 2.88 | 0.8 | 30 | 2900 | 3 | 120 | ||
6.48 | 1.8 | 20 | ||||||
9 | 2.52 | 15 | ||||||
40WSY-258 | 5.76 | 1.6 | 25 | 2900 | 4 | 142 | ||
8.1 | 2.24 | 20 | ||||||
13.32 | 3.7 | 15 | ||||||
40FSY-22 | 8.1 | 2.24 | 22 | 2900 | 3 | 140 | ||
15.84 | 4.4 | 18 | ||||||
20 | 5.5 | 15 | ||||||
40FSY-18 | 6.48 | 1.8 | 18 | 2900 | 2.2 | 132 | ||
15 | 4.17 | 15 | ||||||
21.6 | 6 | 12 | ||||||
40WSY-50 | b型 | 6.48 | 1.8 | 50 | 2900 | 7.5 | 144 | |
8.64 | 2.4 | 45 | ||||||
14.4 | 4 | 35 | ||||||
40FSY-35 | 10 | 2.8 | 34 | 2900 | 4 | 162 | ||
20 | 5.5 | 30 | ||||||
30 | 8.3 | 24 | ||||||
50FSY*35 | 30 | 8.3 | 35 | 2900 | 7.5 | 182 | ||
45 | 12.5 | 32 | ||||||
55 | 15.1 | 28 | ||||||
50FSY-35A | 25 | 7 | 26 | 2900 | 5.5 | 168 | ||
35 | 9.7 | 25 | ||||||
45 | 12.5 | 22 | ||||||
50FSY-20 | 18 | 5 | 20 | 2900 | 4 | 150 | ||
30 | 8.3 | 16 | ||||||
35 | 9.7 | 12 | ||||||
80FSY-35 | 56 | 15.5 | 35 | 2900 | 15 | 184 | ||
92 | 25.5 | 29 | ||||||
110 | 30.5 | 25 | ||||||
80FSY-35A | 45 | 12.5 | 26 | 2900 | 11 | 163 | ||
69 | 19.2 | 22 | ||||||
90 | 25 | 19 | ||||||
娱乐中心The pump is widely used in chemical, petrochemical, smelting, dye, pesticide, pharmaceutical, rare earth, chemical fertilizer and other industries. It is the most ideal equipment for conveying various non oxidizing acids (hydrochloric acid, dilute sulfuric acid, formic acid, acetic acid, butyric acid) and other corrosive media without suspended solid particles on the storage tank, which are not easy to crystallize and the temperature is not higher than 100 ℃.
