娱乐中心Product overview

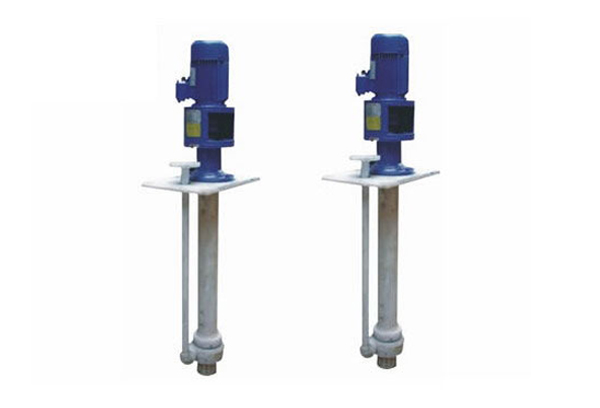

FYs series fluoroplastic alloy vertical submerged pump is a kind of single-stage single suction long shaft submerged pump developed and produced by our company in combination with similar products at home and abroad. The pump is suitable for conveying corrosive medium without solid particles and abrasives at 0 ℃ - 80 ℃. All parts in contact with the medium of FYs series submerged pump are covered with fluoroplastic alloy. The lower sheath is made of high-quality silicon carbide, which has the advantages of wear resistance and corrosion resistance.
娱乐中心Performance range
The flow rate is 1.6m3/h-100m3/h,
The lift is 5m-1m. When the FYs series corrosion-resistant vertical submerged pump is started, the liquid level must be 180 mm higher than the impeller center line.
Model meaning
model | flow m3/h | lift m | Matching motor kw | speed r/min | 娱乐中心efficiency % |
25FYS-10 | 1.5 | 10 | 2.2 | 2900 | 0.14 |
25FYS-18 | 3.6 | 18 | 2.2 | 2900 | 0.65 |
40FYS-15 | 5 | 15 | 2.2 | 2900 | 0.43 |
40FYS-20 | 10 | 20 | 3 | 2900 | 1.18 |
40FYS-30 | 10 | 30 | 4 | 2900 | 2.04 |
40FYS-40 | 10 | 40 | 4 | 2900 | 3.1 |
50FYS-20 | 15 | 20 | 4 | 2900 | 1.6 |
50FYS-25 | 15 | 25 | 4 | 2900 | 2.12 |
50FYS-30 | 15 | 30 | 5.5 | 2900 | 3.06 |
50FYS-50 | 12.5 | 50 | 7.5 | 2900 | 4.25 |
65FYS-25 | 25 | 25 | 5.5 | 2900 | 3.1 |
65FYS-32 | 29 | 32 | 5.5 | 2900 | 4.5 |
65FYS-50 | 29 | 50 | 11 | 2900 | 7.45 |
80FYS-20 | 50 | 20 | 11 | 2900 | 3.8 |
80FYS-30 | 50 | 30 | 15 | 2900 | 6.38 |
80FYS-50 | 50 | 50 | 18.5 | 2900 | 11.34 |
100FYS-32 | 100 | 32 | 22 | 2900 | 11.5 |
100FYS-40 | 100 | 40 | 22 | 2900 | 19.7 |
Efficiency the pump can transport acid, alkali, salt, oil, beverage and other media, widely used in chemical, petrochemical, fine chemical, dye chemical, environmental protection, water treatment, medicine, food and other departments.
