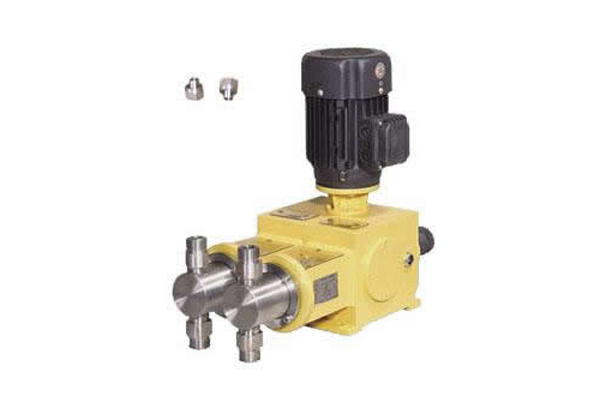

Overview of 2j-x plunger metering pump
Measurement range: 0-300l / h (single head: 150L / h)
Pressure range: 0-50mpa
Driving mode: motor driven
Control mode: manual and automatic control
娱乐中心Configuration: pump head insulation, cooling, motor can be equipped with explosion-proof
娱乐中心1. All parts in direct contact with medium are made of stainless steel and tetrafluoroethylene. The overflow is suitable for general particles, non-toxic and tasteless.
娱乐中心2. Double pump head structure, economic and practical, small floor area, superior performance.
娱乐中心3. All vulnerable parts are specially treated and quality guaranteed.
4. With excellent performance regulator assembly, it can prolong the service life of the pump and reduce the noise.
娱乐中心5. Quantitative output, when the pump is running or stopping, the flow rate can be adjusted arbitrarily, and the precision can be up to plus or minus one percent.
6. High spit pressure, a series up to 500kg. 7. It is suitable for conveying medium with temperature of - 30 ~ 120 ℃ and viscosity of 0.3 ~ 800mm2 / s.
Material of pump head | 娱乐中心Working conditions |
Metering pump head: SUS304, SUS316 | Ambient temperature: - 15 ℃ - normal temperature |
娱乐中心Metering valve: SUS304, SUS316 | 娱乐中心Motor: two phase, three-phase standard motor or explosion-proof motor |
娱乐中心Valve ball: silica, SUS304, SUS316, ceramics, zirconia | Power: 0.37kw 0.55kw |
Seal: PTFE | Protection grade: IP55 |
model | flow (L/H) | pressure (Mpa) | Plunger diameter (mm) | trip (mm) | Pump speed (mm) | Motor power (kw) | In and out diameter (DN) | weight (KG) |
2J-X 5/50 | 5 | 5D | 6 | 20 | 96 | 0.55 | 6 | 35 |
2J-X 5/38 | 5 | 38 | 0.37 | |||||
2J-X 8/32 | 8 | 32 | 8 | 0.55 | ||||
2J-X 8/21 | 8 | 21 | 0.37 | |||||
2J-X 16/20 | 16 | 20 | 10 | 0.55 | ||||
2J-X 16/13 | 16 | 13 | 0.37 | |||||
2J-X 25/14 | 25 | 14 | 12 | 0.55 | ||||
2J-X 25/9.0 | 25 | 9 | 0.37 | |||||
2J-X 40/7.6 | 40 | 7.6 | 16 | 0.55 | ||||
2J-X 40/5.4 | 40 | 5.4 | 0.37 | |||||
2J-X 60/5.0 | 60 | 5 | 20 | 0.55 | ||||
2J-X 60/3.5 | 60 | 3.5 | 0.37 | |||||
2J-X 100/3.2 | 100 | 3.2 | 25 | 0.55 | 10 | 38 | ||
2J-X 100/2.2 | 100 | 2.2 | 0.37 | |||||
2J-X 130/2.5 | 130 | 2.5 | 28 | 0.55 | ||||
2J-X 130/1.7 | 130 | 1.7 | 0.37 | |||||
2J-X 160/2.0 | 160 | 2 | 32 | 0.55 | ||||
2J-X 160/1.3 | 160 | 1.3 | 0.37 | |||||
2J-X 200/1.6 | 200 | 1.6 | 35 | 0.55 | 15 | 43 | ||
2J-X 200/1.0 | 200 | 1 | 0.37 | |||||
2J-X 250/1.3 | 250 | 1.3 | 38 | 0.55 | ||||
2J-X 250/0.8 | 250 | 0.8 | 0.37 | |||||
2J-X 300/1.0 | 300 | 1 | 42 | 0.55 | ||||
2J-X 300/0.6 | 300 | 0.6 | 0.37 |
娱乐中心2j-x plunger metering pump is widely used in petrochemical, chemical, electric power, metallurgy, mining, shipbuilding, light industry, agriculture, national defense and other industries.
