Brand manufacturer Shanghai xinguangming Pump Co., Ltd. creates QBY pneumatic diaphragm pump, electric diaphragm pump and pneumatic double diaphragm pump with exquisite technology. The product has stable performance and reliable quality. QBY pneumatic diaphragm pump, DBY electric diaphragm pump, pneumatic double diaphragm pump technology 021-62156413
Diaphragm pump is a new type of conveying machinery, which uses compressed air or motor as power source. Diaphragm pump is a positive displacement pump with volume change caused by reciprocating deformation of diaphragm. Diaphragm pump has the advantages of reliable quality, long service life, low noise, small vibration, no collapse and fine work. It can not only pump conventional flowing medium, but also transport some difficult flowing medium. It has the advantages of self-priming pump, submersible pump, canned motor pump, mud pump and other impurity conveying machinery. According to different liquid media, diaphragm pump adopts NBR, neoprene, fluororubber and polytetrafluoroethylene. To meet the needs of different users. Pneumatic diaphragm pump and electric diaphragm pump are widely used in petroleum, chemical, electronic, ceramic, textile, paint, pharmaceutical machinery and other industries.
娱乐中心Product overview
The newly developed xdby electric diaphragm pump adopts XLD series cycloidal pin wheel reducer, Electric diaphragm pump is a new type of pump. In recent years, due to the breakthrough in diaphragm material, more and more industrialized countries in the world use this type of pump to replace some centrifugal pumps and screw pumps for petrochemical, ceramic, metallurgical and other industries. The product design is based on the prototype of Abel company in the United States. The pump is suitable for low pressure, that is, the outlet pressure ≤ 3kg F / cm2.

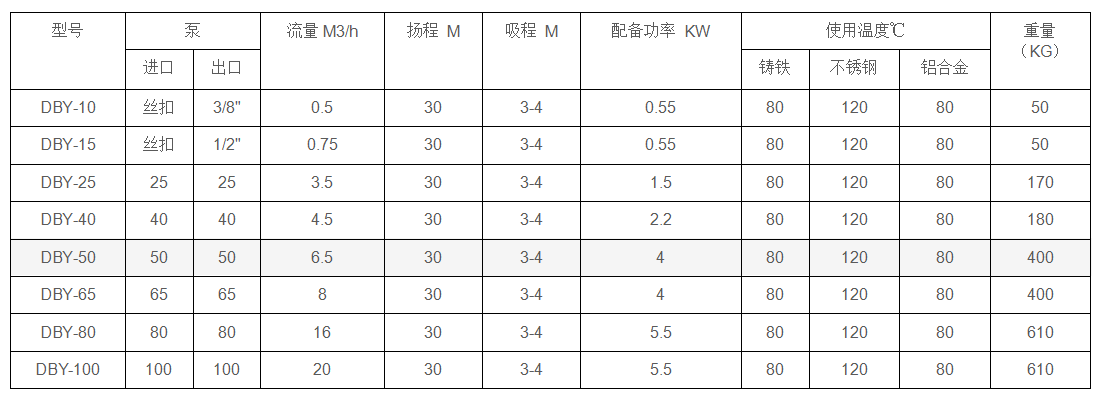

娱乐中心technical parameter
Flow rate: 0-20m3 / h;
Lift: 30m;
娱乐中心Power: 0.37-4kw;
Speed: 1450r / min;
娱乐中心Diameter: 10-100 mm;
Temperature: - 15 - + 150 ℃;
娱乐中心Self priming height: 5-7m.
Scope of application:
娱乐中心1. All kinds of highly toxic, flammable and volatile liquids.
娱乐中心2. All kinds of strong acid, strong alkali, strong corrosive liquid.
3. It can transport high temperature medium 150 ℃.
4. It is used as the front stage pressure supply device of various filter press.
娱乐中心5. Hot water recovery and circulation.
6. Loading and unloading of tank trucks, oil depots and oil products.
7. Pump pickle jam, mashed potatoes, chocolate, etc.
娱乐中心8. Pump paint, gum, pigment binder.
9. All kinds of porcelain glaze slurry cement grouting mortar slurry.
10. A variety of rubber latex, organic solvents, fillers.
11. Pump is used to clear the warehouse of oil tanker barge to absorb the sewage and residual oil in the tank.
12. Hops and fermentation powder slurry, syrup, molasses.
娱乐中心13. Pump the sewage and sediment in mine, tunnel, tunnel and sewer.
14. Suction and delivery of various special media.
