Product overview
QBY series pneumatic diaphragm pump produced by Shanghai xinguangming Pump Co., Ltd. is a new type of conveying machinery. It uses compressed air as the power source. It can absorb all kinds of corrosive liquid, liquid with particles, high viscosity, volatile, flammable and toxic liquid. Its performance parameters are similar to wllden pvmps of Germany and marlowpumps of USA.

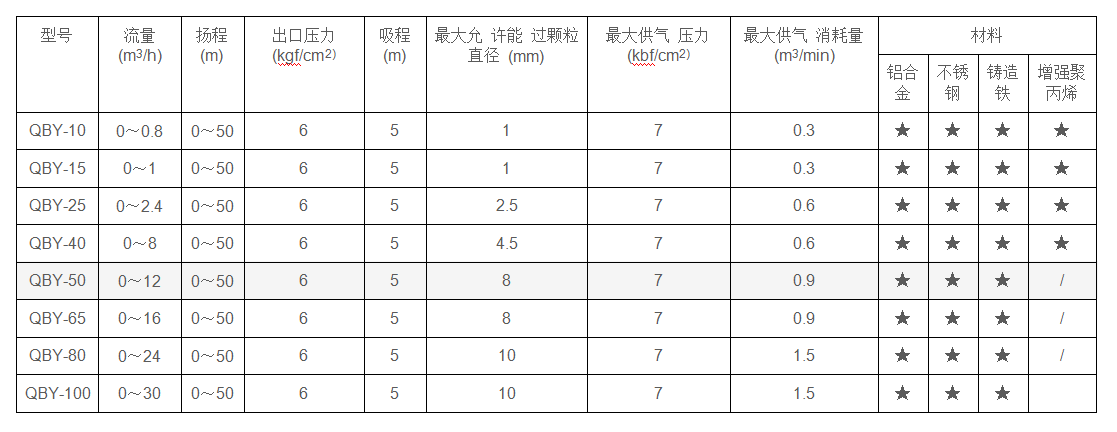

娱乐中心technical parameter
Flow rate: 0-30m3 / h;
Lift: 0-50m;
Diameter: 10-100 mm;
Temperature: - 15 - + 150 ℃;
Pressure: 0.1-0.7mpa;
娱乐中心Self priming height: 5-7m.
Scope of application
1. Pumping peanut butter, pickles, mashed potatoes, small red sausage, jam apple pulp, chocolate, etc.
娱乐中心2. Pump paint, gum, pigment.
娱乐中心3. Adhesive and glue, all kinds can be pumped.
4. All kinds of glaze paste of tile, porcelain, brick and pottery.
娱乐中心5. After the well is drilled, the sediment is pumped and grouted.
6. Pump various emulsions and fillers.
娱乐中心7. Pump all kinds of sewage.
娱乐中心8. Pumps are used for oil tankers and barges are used to clear the warehouses and absorb the sewage in the tanks.
娱乐中心9. Hops and fermentation powder slurry, syrup, sugar density.
娱乐中心10. Pump the water in mine, tunnel, tunnel, mineral processing and slag. Pumping cement grouting and mortar.
娱乐中心11. All kinds of rubber paste.
12. All kinds of abrasives, corrosive agents, oil and mud, cleaning oil dirt and general containers.
娱乐中心13. All kinds of highly toxic, flammable and volatile liquids.
14. All kinds of strong acid, strong alkali, strong corrosive liquid.
娱乐中心15. All kinds of high temperature liquid are high and can withstand 150 ℃.
16. It is used as the front stage pressure supply device of various solid-liquid separation equipment.
