Product overview

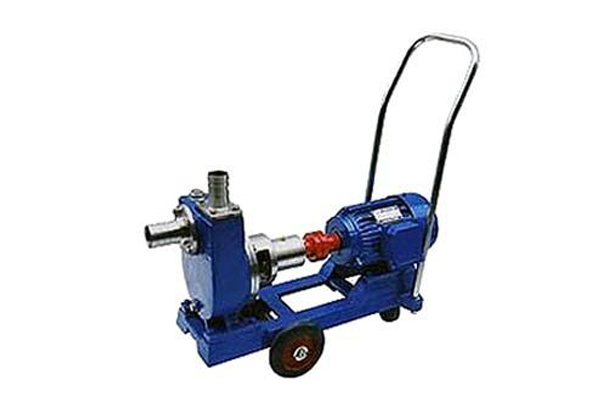

JMZ type stainless steel self-priming pump (wine pump) the self-priming pump is assembled with new mechanical seal, explosion-proof installation and no leakage for a long time. It is suitable for conveying all kinds of alcohol, beverage, dairy products, medicament, gasoline, solvent oil, syrup, etc. from - 35 ℃ to + 120 ℃.
The pump has the characteristics of compact structure, simple operation, small volume, light weight, stable performance, no bottom valve and no need of irrigation when starting. The pump can be used to transport thick slurry, acid, alkali, salt and other liquids after replacing 3-4 parts.
娱乐中心Performance range:
The flow rate is 3m3 / h-100m3 / h
娱乐中心The lift is 18m-14m
The diameter is 25 mm-150 mm
Model meaning
Example: 40 jmz-30 t
40: inlet diameter (mm)
J: J is liquor pump, f is acid resistant pump
娱乐中心M: m stands for high quality stainless steel manufacturing
娱乐中心Z: Z is self-priming, t is mobile, and G is fixed
30: lift (m)
T: T: outlet or flow with special requirements
model | caliber （mm) | flow（m3/h) | lift（m） | 娱乐中心Suction range（m） | electric machinery（kw） | turn（r/min） | |
Import | Products | ||||||
25JMZ-22 | 25 | 25 | 3 | 22 | 5 | 1.1 | 2900 |
25JMZ-30 | 25 | 25 | 3 | 30 | 6 | 1.5 | 2900 |
40JMZ-22 | 40 | 25 | 6 | 22 | 5 | 1.5 | 2900 |
40JMZ-30 | 40 | 25 | 6 | 30 | 6 | 2.2 | 2900 |
40JMZ-40 | 40 | 25 | 6 | 40 | 6 | 3 | 2900 |
50JMZ-22 | 50 | 40 | 12 | 22 | 5 | 2.2 | 2900 |
50JMZ-30T | 50 | 50 | 20 | 30 | 6 | 4 | 2900 |
50JMZ-40 | 50 | 40 | 12 | 40 | 6 | 4 | 2900 |
65JMZ-22 | 65 | 50 | 24 | 22 | 5 | 4 | 2900 |
65JMZ-30T | 65 | 65 | 30 | 30 | 6 | 5.5 | 2900 |
80JMZ-22 | 80 | 65 | 48 | 22 | 5 | 7.5 | 2900 |
80JMZ-30 | 80 | 65 | 48 | 30 | 5 | 7.5 | 2900 |
125JMZ-18 | 125 | 100 | 100 | 18 | 5 | 15 | 2900 |
娱乐中心JMZ type stainless steel self-priming pump (wine pump) the self-priming pump is assembled with new mechanical seal, explosion-proof installation and no leakage for a long time. It is suitable for conveying all kinds of alcohol, beverage, dairy products, medicament, gasoline, solvent oil, syrup, etc. from - 35 ℃ to + 120 ℃.
