Product overview
娱乐中心I-1b series concentrated slurry pump is a single screw volumetric rotary pump. The pump uses the rotation of eccentric single screw screw in the double screw bushing to make the concentrated slurry move from the inlet to the outlet along the spiral groove, so as to realize the pump's conveying function.
Product features
娱乐中心1. It can transport suspension slurry with high concentration and viscosity less than 10000 PAS and containing particles.
娱乐中心2. The conveying liquid flow is stable without over flow, pulsation, stirring and shearing of slurry.
娱乐中心3. The discharge pressure has nothing to do with the rotating speed, and the high discharge pressure can be maintained at low flow rate.
娱乐中心4. The flow rate is directly proportional to the speed, and the flow can be adjusted by the speed changing mechanism or the speed regulating motor.
5. Strong self-priming capacity, liquid can be directly pumped without bottom valve.
娱乐中心6. The pump can be reversed, and the liquid flow direction is changed by the rotation direction of the pump, which is suitable for the occasions where the pipeline needs to be flushed in the reverse direction.
7. Stable operation, low vibration and noise.
娱乐中心8. Simple structure, convenient disassembly and maintenance.
娱乐中心The pump is widely used in chemical, pharmaceutical, brewing, paper, food and other units.
娱乐中心Structure material form
Type i-1bb: shell casting, transmission parts (main shaft, screw and winding shaft) are made of 2Cr13 stainless steel, which is suitable for the transportation of general neutral concentrated slurry, general weak acid and alkali slurry.
娱乐中心Type i-1bf: transmission parts and pump shell contacting with slurry are made of stainless steel, which is suitable for transportation of food, pharmaceutical and corrosive slurry.
Rubber bushing has general wear-resistant rubber, food rubber and oil resistant rubber for users to choose.
The transmission mode includes direct transmission of motor and pump shaft, direct transmission of motor through reducer and pump, and transmission of motor through V-belt pulley and pump shaft.
There are general enclosed motor, explosion-proof motor and electromagnetic speed regulating motor, with stepless speed change machine and gear reducer for users to choose. (material, stainless steel, cast iron)

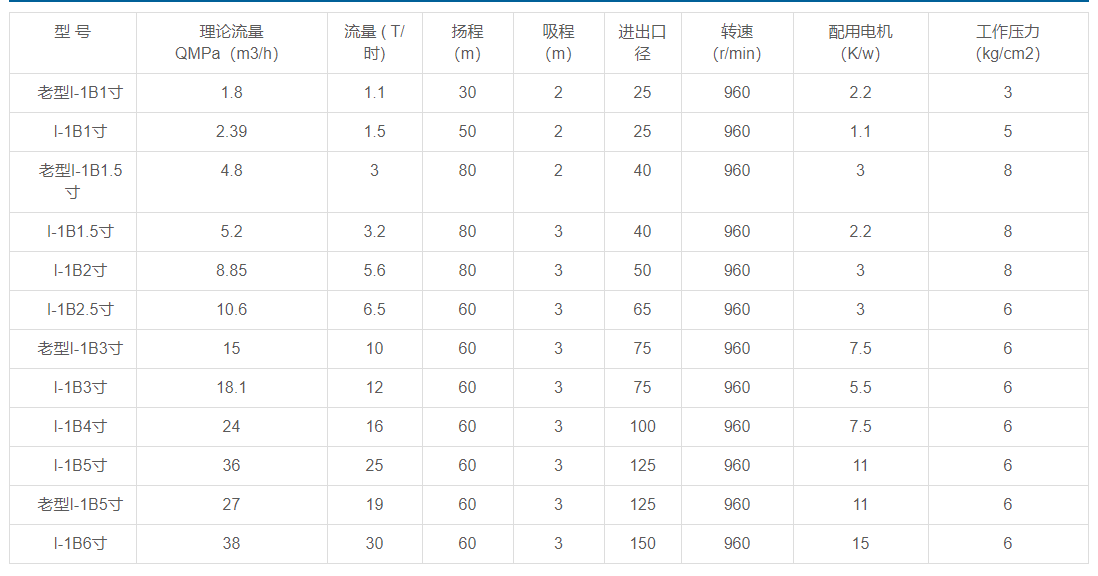

娱乐中心technical parameter
Flow: 1.5-38m3 / h;
Lift: 30-80m;
Power: 1.1-15kw;
娱乐中心Speed: 960r / min;
Temperature: 0-100 ℃;
Caliber: 25-150 mm.
娱乐中心Transportation of industrial sewage, domestic sewage and muddy water containing solid particles and short fibers, especially used in oil-water separator
娱乐中心Plate and frame filter press equipment, etc.
娱乐中心Shipbuilding Industry: ship bottom cleaning, oil and water, oil residue, oil sewage ring transportation.
娱乐中心Petroleum Industry: transportation of crude oil, mixture of crude oil and water, mixture of coalfield gas and water, injection of polymer into formation, etc.
Medicine, daily chemical: all kinds of thick paste, emulsion, various ointment cosmetics
娱乐中心Food can industry: all kinds of sticky starch, distiller's grains, grain product residue, all kinds of sauce, pulp, solid slurry
Construction industry: cement mortar, lime slurry, coating, paste spraying
Mining industry: solid particles, groundwater, sewage slurry water in the mine
Chemical industry: all kinds of suspensions, oils, gels and adhesives
Printing and papermaking: PVC polymer paste of high viscosity ink and wallpaper, pulp of various concentrations and short fiber pulp
娱乐中心Industrial boilers and power plants: coal water slurry transportation
