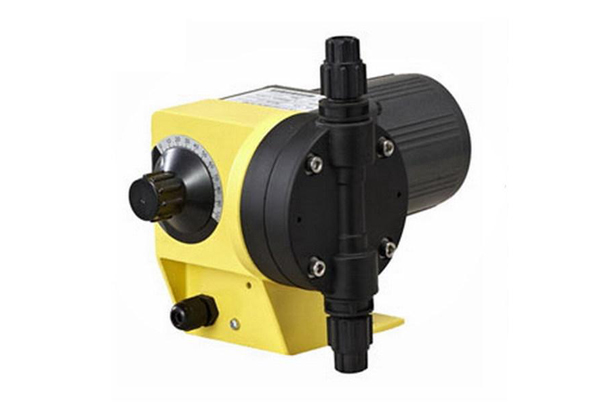

娱乐中心JMW diaphragm metering pump is a kind of mechanical diaphragm metering pump driven by motor. It is suitable for accurate measurement of fluid at bottom pressure. There are many kinds of pump heads. The diaphragm is made of multi-layer composite PTFE. It is widely used in sewage treatment, food additive and transportation of various special media due to its high measurement accuracy, stability and high working requirements. Measuring range: 0-30l / h pressure range: 0-0.5mpa driving mode: motor driving control mode: manual and automatic control
娱乐中心texture of material
Material of pump head | 娱乐中心Working conditions |
娱乐中心Metering pump head: PVC, SUS304, SUS316, PTFE | 娱乐中心Ambient temperature: - 30 ℃ - + 60 ℃ |
Metering valve: PVC, SUS304, SUS316, PTFE | Motor: two phase three phase |
娱乐中心Valve ball: silica, SUS304, SUS316, ceramic | Power: 25W 80W |
Seal: PTFE, PVC | Protection grade: IP54 |
JMW diaphragm metering pump
model | flow （l/h） | pressure （mpa） | Impact times （min-1） | In and out diameter | weight kg |
JMW-5/0.5 | 5 | 0.5 | 120 | The φ 6 hose includes filter bottom valve and injection valve | 4.5 |
JMW-10/0.4 | 10 | 0.4 | |||
JMW-20/0.3 | 20 | 0.3 | |||
JMW-30/0.3 | 30 |
娱乐中心JMW diaphragm metering pump is widely used in petrochemical, chemical, electric power, metallurgy, mining, shipbuilding, light industry, agriculture, national defense and other industries.
