娱乐中心Product overview
Fzb series fluoroplastic self-priming pump is designed and manufactured according to international standards and combined with non-metallic pump process. The pump body is made of metal shell lined with Fluoroplastic. All flow passage parts are made of fluoroplastic alloy. The pump cover and impeller are all sintered and pressed with metal inserts wrapped with fluoroplastics. The shaft seal adopts the external advanced bellows mechanical seal. The static ring is made of 99.9% alumina ceramic (or silicon nitride), and the moving ring is made of PTFE filling material. Its corrosion resistance and wear resistance are excellent. The inlet and outlet of the pump are reinforced with cast steel to enhance the pressure resistance of the pump. The practical application shows that the pump has the advantages of corrosion resistance, wear resistance, high temperature resistance, no aging, high mechanical strength, stable operation, advanced and reasonable structure, strict and reliable sealing performance, convenient disassembly and maintenance, and long service life.
Product features
The outstanding feature of fzb self-priming pump is that it can pump the liquid below the pump installation position with stable performance and simple operation. It only needs to be filled before the first use of the pump, and the second and later use does not need to be filled with liquid. The self-priming height can be determined within 2-4 meters according to the medium density. It is a better choice to replace the bulky submerged pump.
technical parameter
Flow rate: 1.5 ~ 60m3 / h;
Lift: 15-50m;
娱乐中心Speed: 2900r / min;
Power: 1.5 ~ 15kw;
Inlet diameter: 25-80mm;
娱乐中心Applicable temperature: - 20 ℃ ~ 120 ℃.

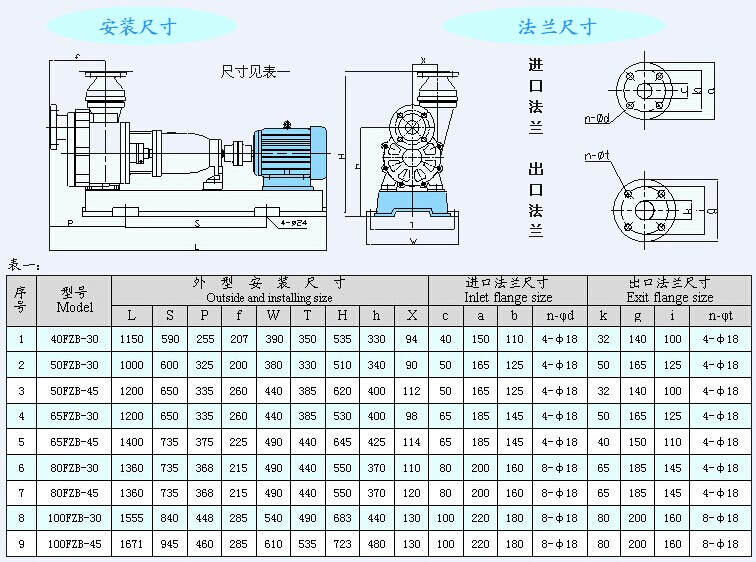

Model meaning
娱乐中心The flow passage parts of fzb self-priming pump are all made of fluoroplastics and have self-priming function. Therefore, fzb self-priming pump is widely used, such as pumping corrosive liquid from underground tank to target place, pumping acid and alkali from acid-base tank without outlet at the bottom to target location, circulation between multiple acid tanks, or acid unloading, etc.
The humanized design principle and excellent working performance of fzb self-priming pump have become one of the essential pump equipment for more and more users.
